Bootstrapping a data-driven application with Zappa

Some background..

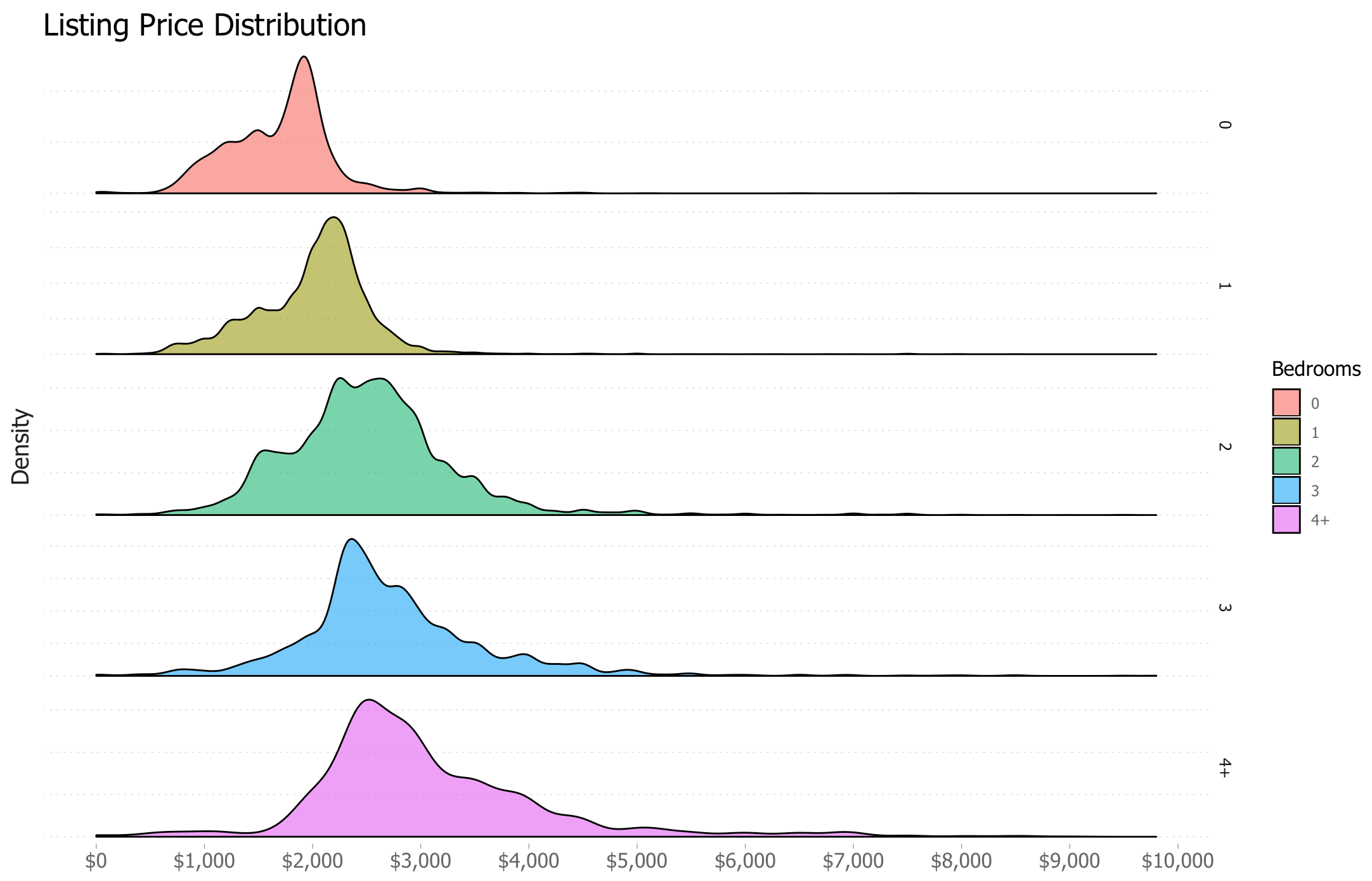

`>>> df[df.bedrooms == 1].price.median()`

$2,200

`>>> df[df.bedrooms == 0].price.median()`

$1,800

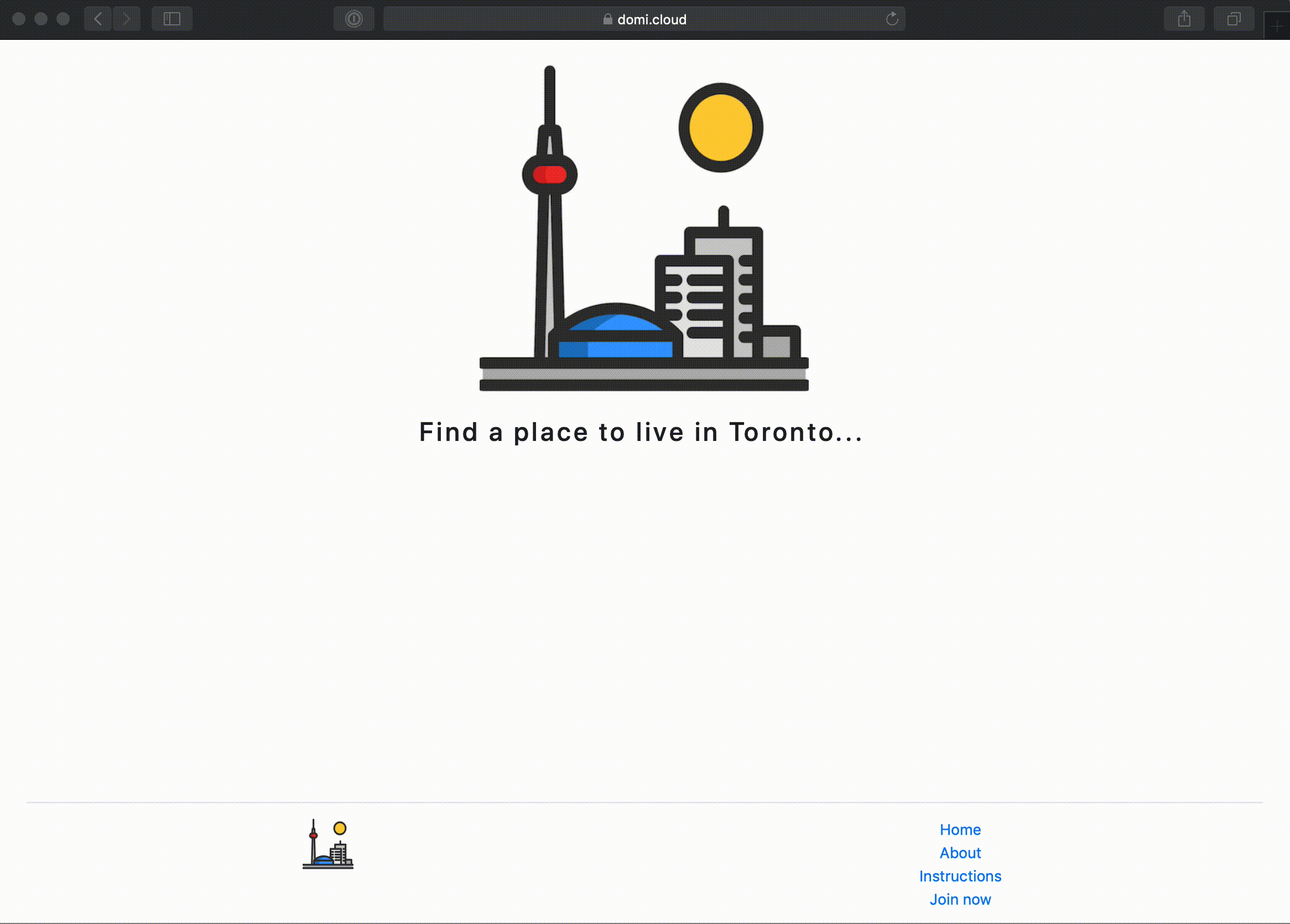

hello, domi

Today's talk

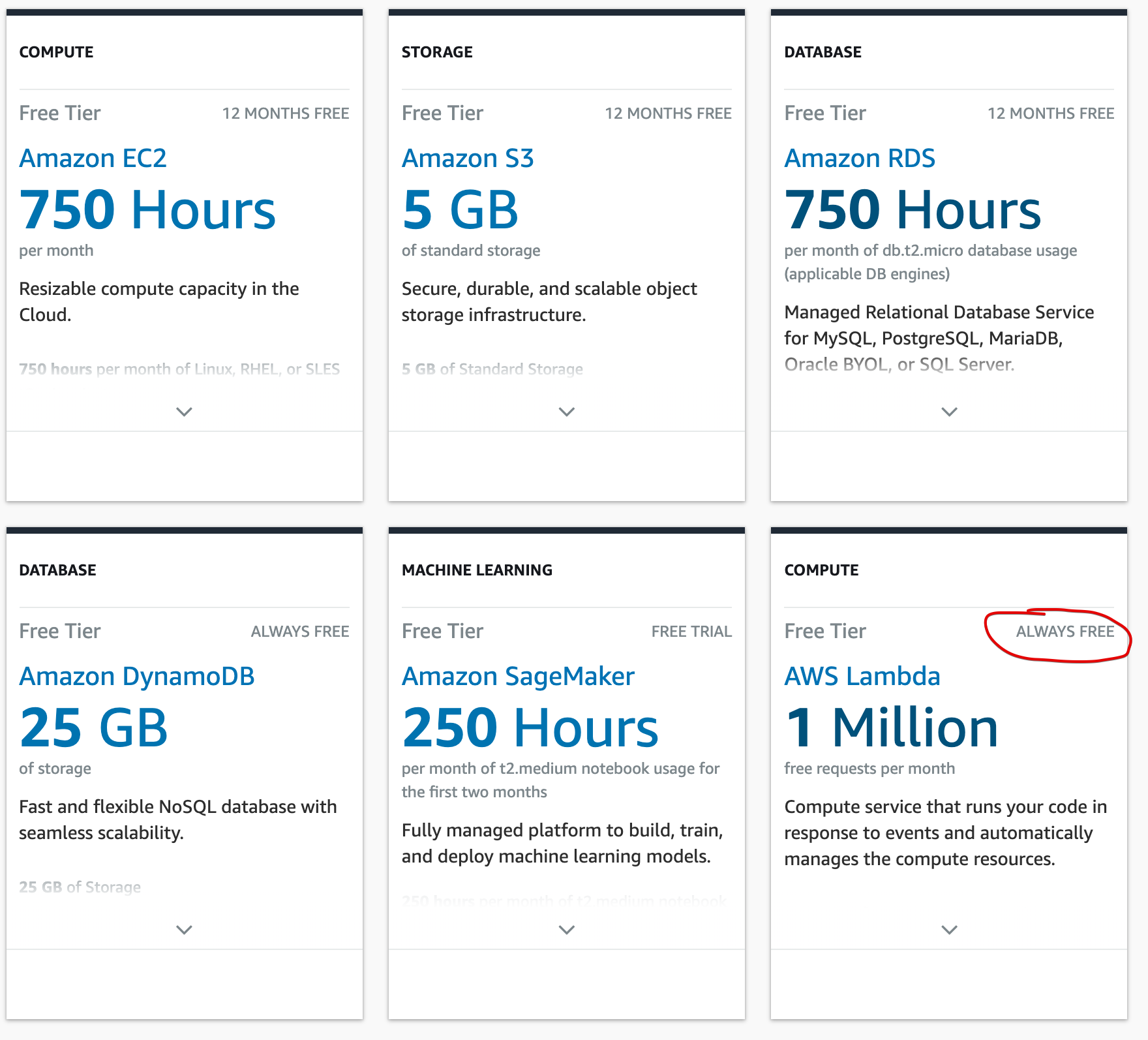

Intro to serverless & zappa

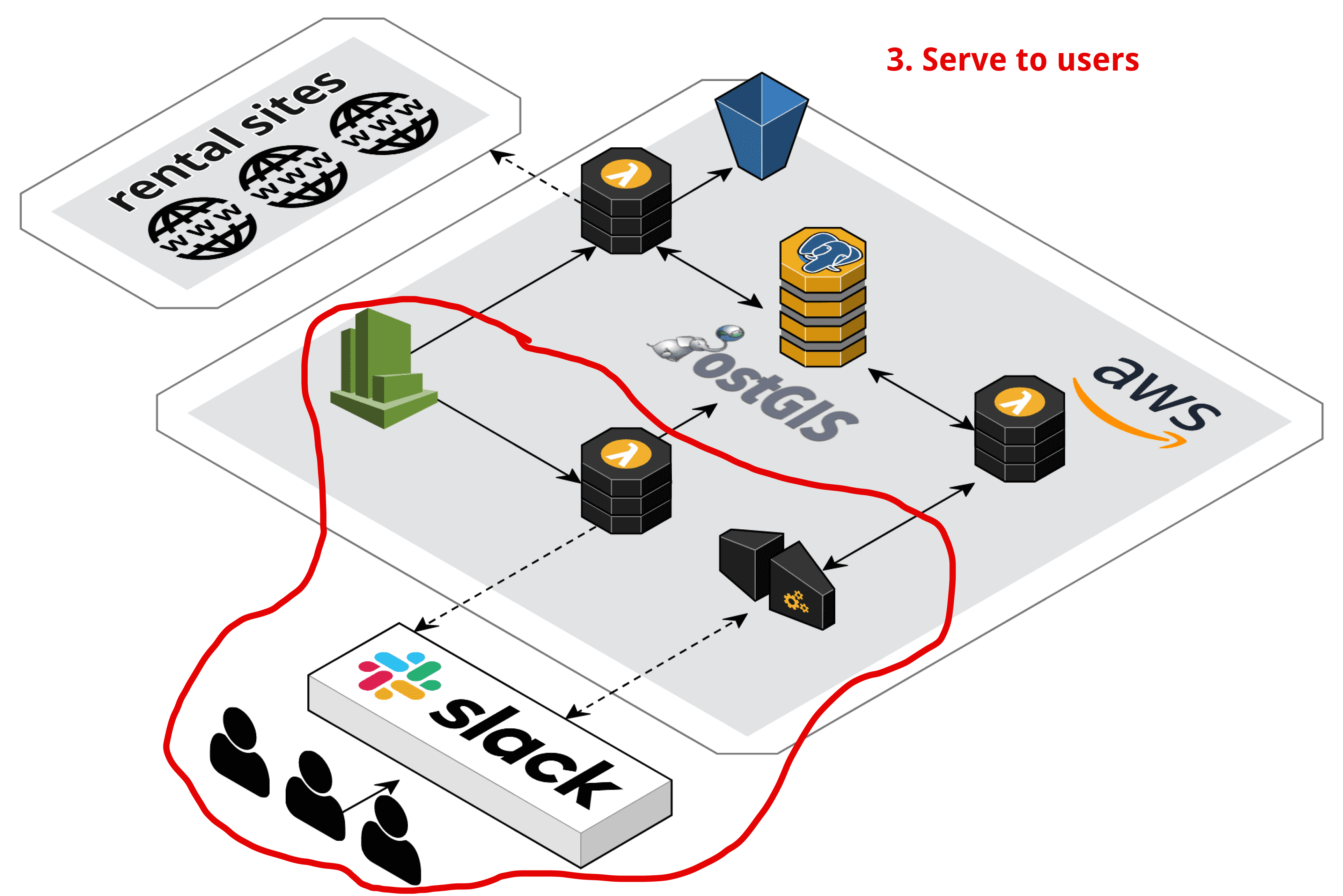

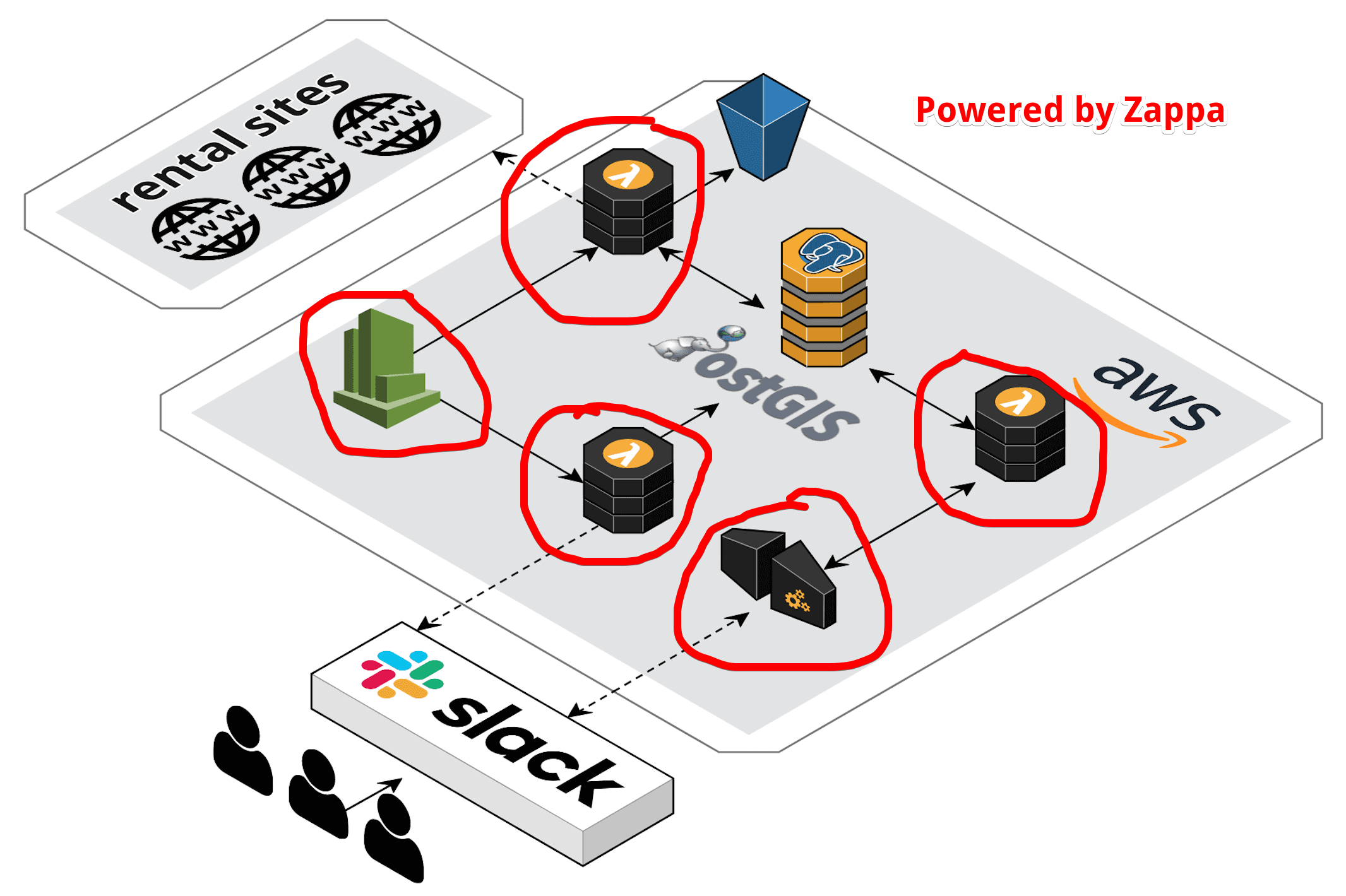

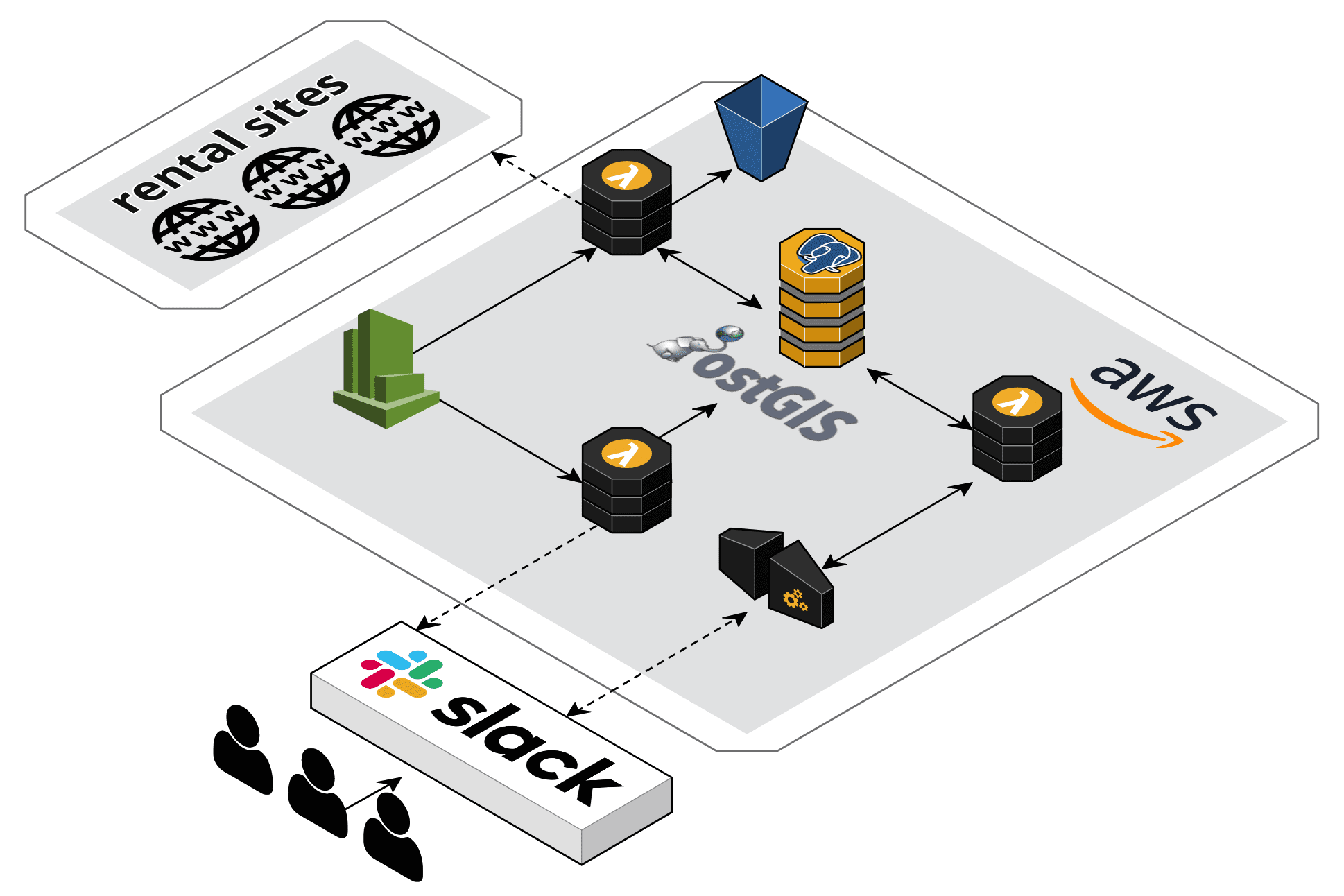

Overview of how domi works & highlight some packages

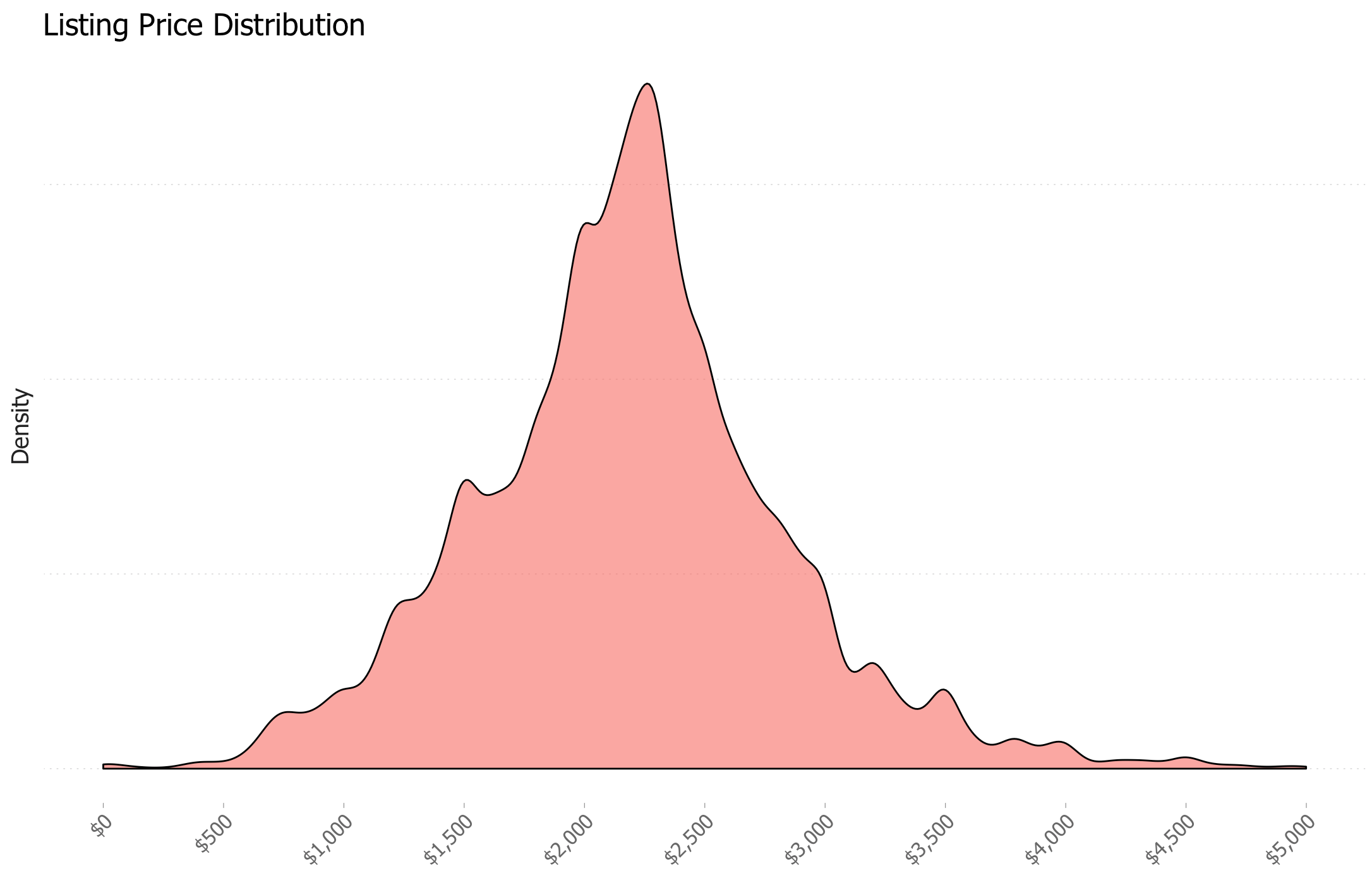

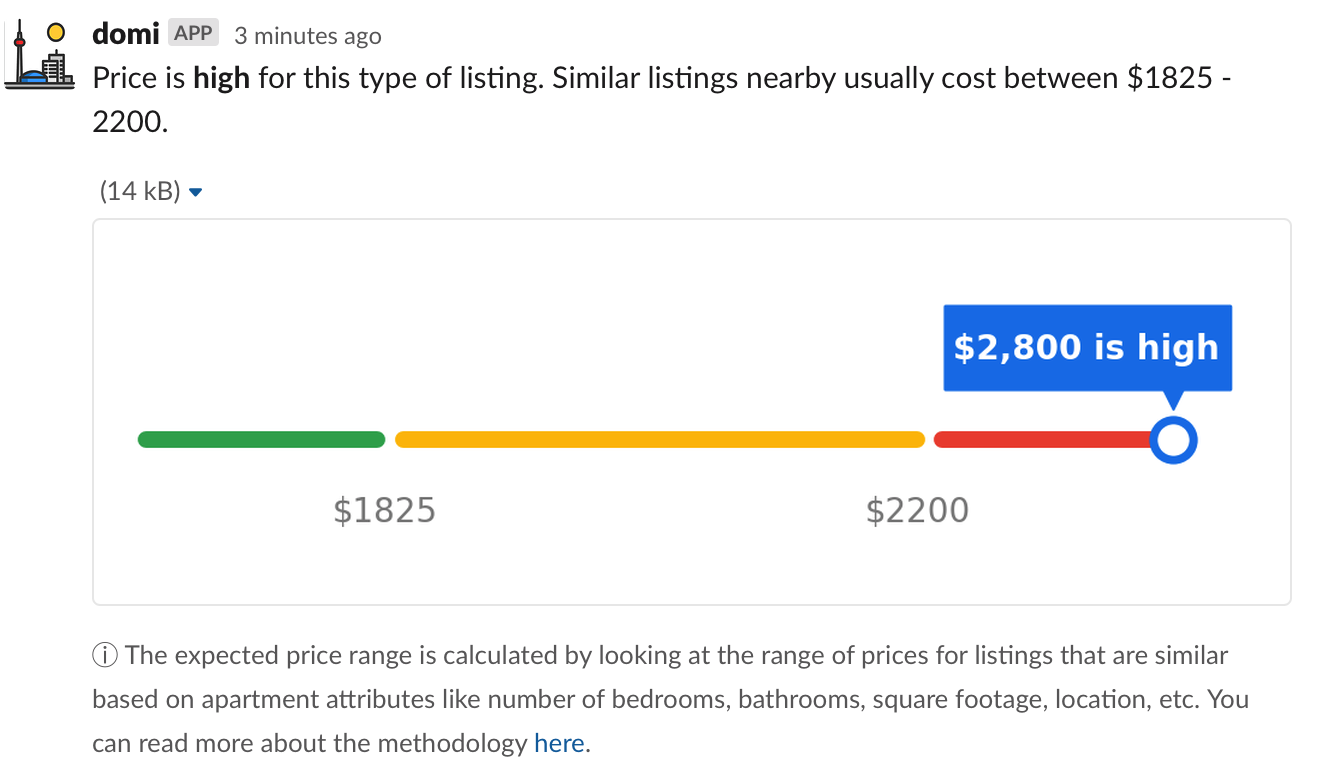

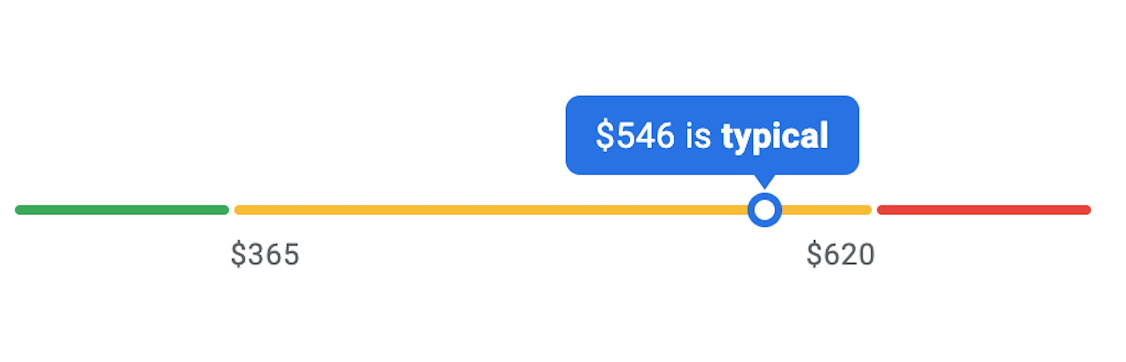

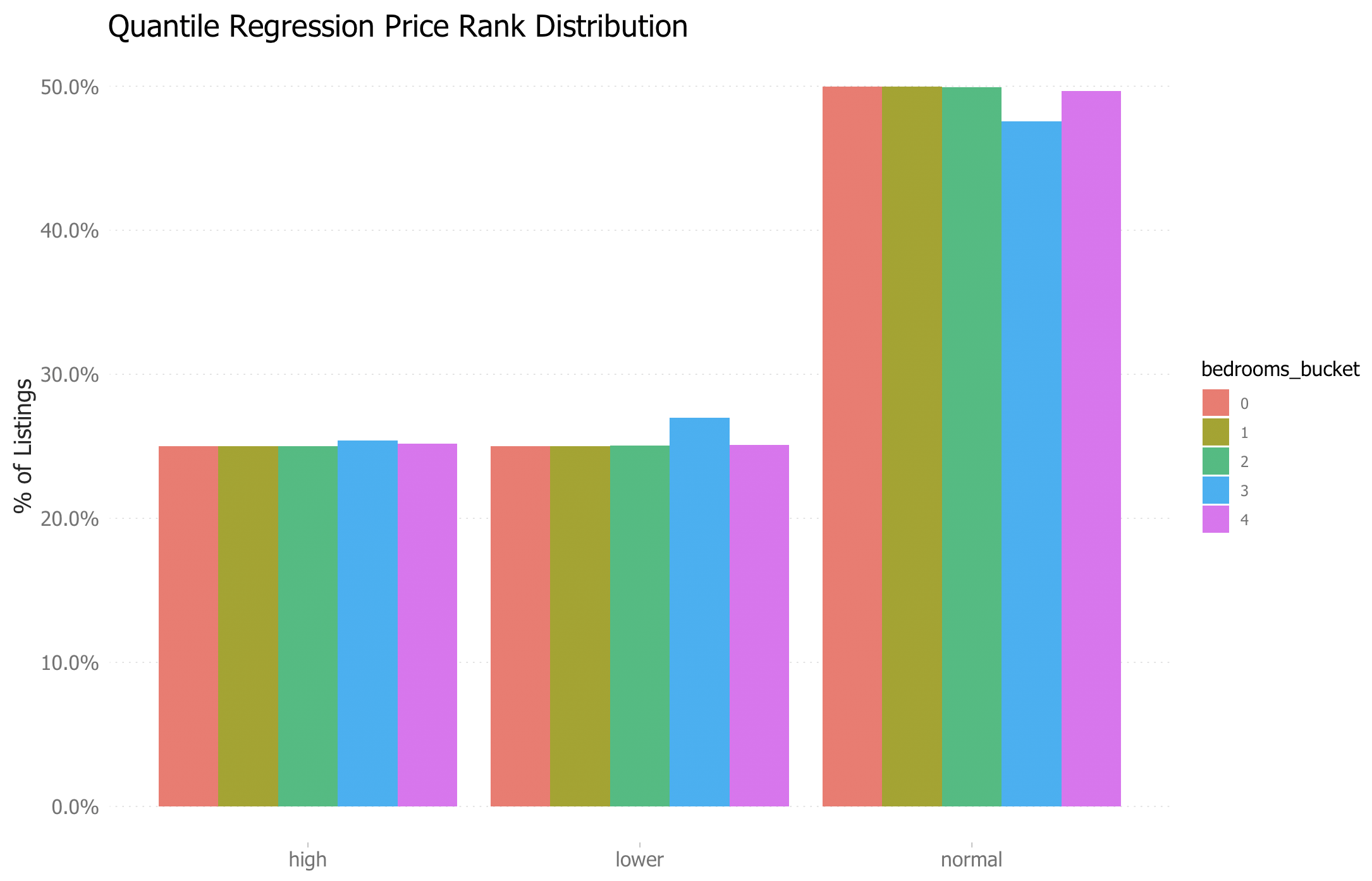

Deep dive into the price rank feature
Application monitoring with great expectations
Serverless gotchas & workarounds

Use Case: Periodically download some data, save to cloud storage (S3)

# Create virtualenv and install packages
→ pipenv install requests

handler.py

import requests
import yaml

import main

def my_handler(event=None, context=None):
    """Kick off the desired function

    Parameters
    ----------
    event : dict, optional
        AWS Lambda uses this parameter to pass in event data to the handler
    context : LambdaContext, optional
        AWS Lambda uses this parameter to provide runtime information
        to your handler
    """

    main.do_stuff() # and things

→ tree
├── Pipfile
├── Pipfile.lock
├── app
│   ├── main.py
│   └── handler.py

→ pipenv run pip show requests
Name: requests
Version: 2.22.0
Summary: Python HTTP for Humans.
Home-page: http://python-requests.org
Author: Kenneth Reitz
Author-email: me@kennethreitz.org
License: Apache 2.0
Location: /Users/ianwhitestone/.../virtualenvs/.../lib/python3.7/site-packages 👈
Requires: idna, urllib3, certifi, chardet
Required-by: zappa

→ PACKAGES_DIR=/Users/ianwhitestone/.../virtualenvs/.../lib/python3.7/site-packages
→ PROJECT_DIR=$(pwd)

→ cd $PACKAGES_DIR
→ zip -r ${PROJECT_DIR}/deployment-package.zip .
...
→ cd ${PROJECT_DIR}/app
→ zip -r ${PROJECT_DIR}/deployment-package.zip .

→ aws iam create-role \
    --role-name lambda_basic_role \
    --assume-role-policy-document file://lambda_trust_policy.json
{
    "Role": {
        "Path": "/",
        "RoleName": "lambda_basic_role",
        "RoleId": "AROA......",
        "Arn": "arn:aws:iam::<account_num>:role/lambda_basic_role",
        "CreateDate": "2019-09-22T16:48:43Z",
        "AssumeRolePolicyDocument": {
            "Version": "2012-10-17",
            "Statement": [
                {
                    "Effect": "Allow",
                    "Principal": {
                        "Service": "lambda.amazonaws.com"
                    },
                    "Action": "sts:AssumeRole"
                }
            ]
        }
    }
}

# Give it full access to S3
→ aws iam attach-role-policy \
    --role-name lambda_basic_role \
    --policy-arn arn:aws:iam::aws:policy/AmazonS3FullAccess

# And cloudwatch (logs)
→ aws iam attach-role-policy \
    --role-name lambda_basic_role \
    --policy-arn arn:aws:iam::aws:policy/CloudWatchFullAccess

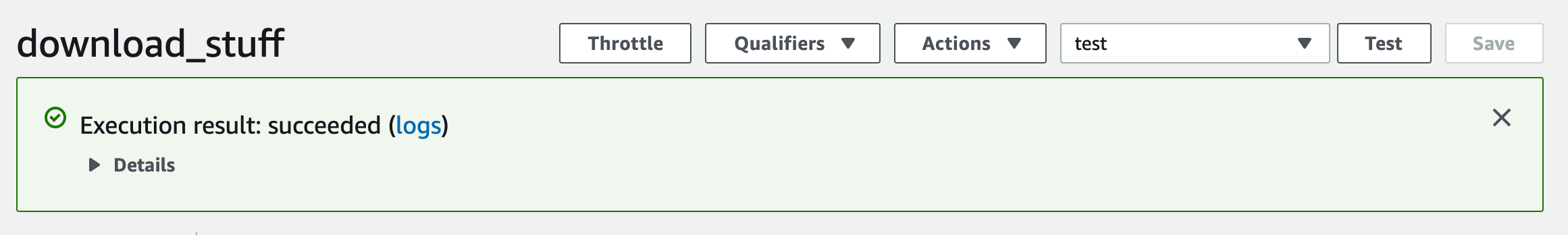

→ aws lambda create-function \
    --function-name download_stuff \
    --runtime python3.7 \ 😎
    --role arn:aws:iam::<account_num>:role/lambda_basic_role \
    --handler handler.my_handler \
    --zip-file fileb://../deployment-package.zip \
    --memory-size 128 \
    --timeout 900 # max timeout (15 minutes)

# Run it every hour
aws events put-rule \
    --name "RunLambdaFunction" \
    --schedule-expression "rate(1 hour)" \
    --state "ENABLED"

# Add lambda function as target
aws events put-targets \
    --rule "RunLambdaFunction" \
    --targets "Id"="1","Arn"="arn:aws:lambda:us-east-1:<account_num>:function:download_stuff"

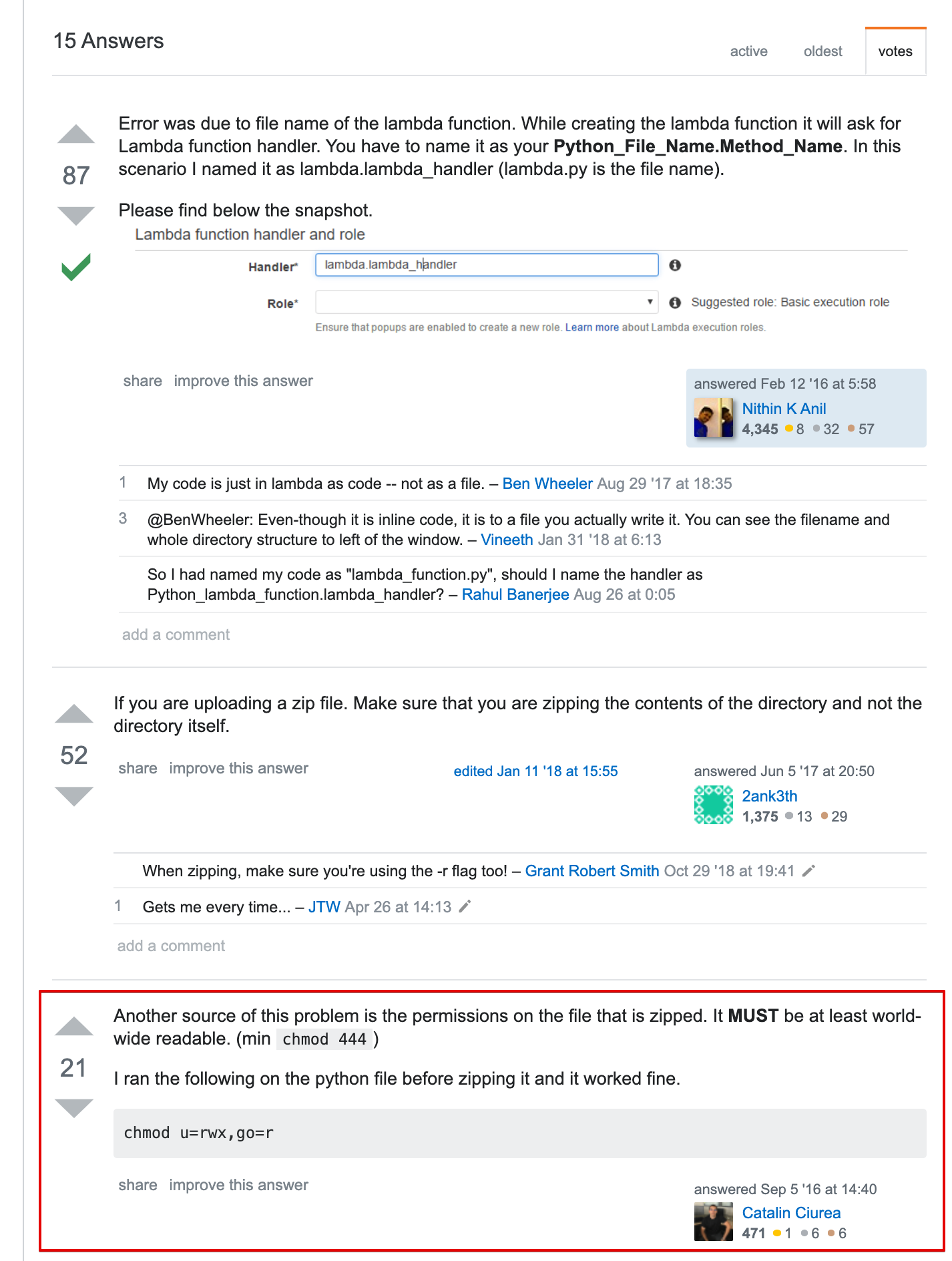

→ chmod -R 755 $PACKAGES_DIR
→ chmod -R 755 $PROJECT_DIR

→ aws lambda update-function-code \
    --function-name download_stuff \
    --zip-file fileb://../deployment-package.zip

Use Case: Periodically download some data, save to ~~cloud storage (S3)~~ database

# Create virtualenv and install packages
→ pipenv install requests

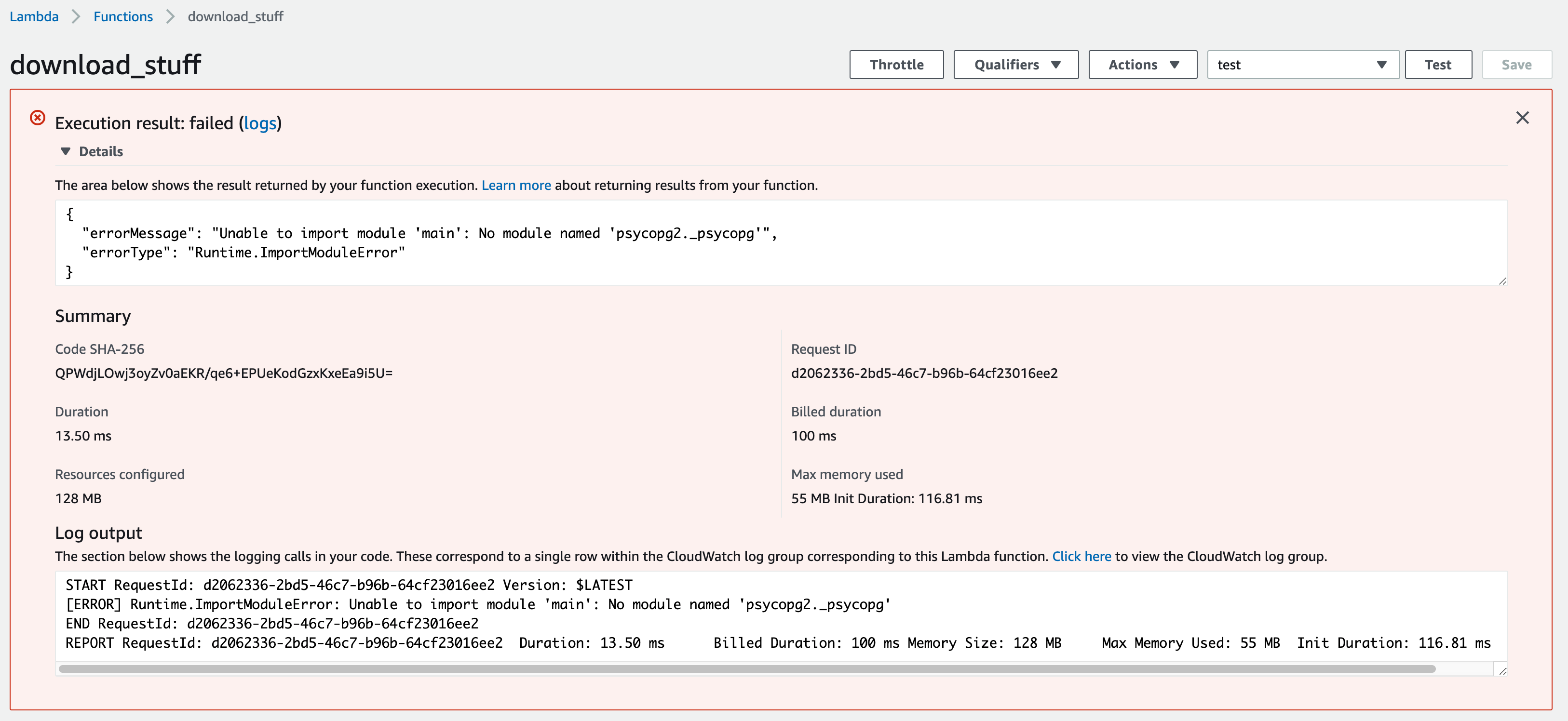

→ pipenv install psycopg2 # new dependency!

Use Case: Periodically download some data, save to database

# Create virtualenv and install packages
→ pipenv install requests
→ pipenv install psycopg2
→ pipenv install zappa  # new dependency!

zappa_settings.json

{
    "dev": {
        "apigateway_enabled": false,
        "aws_region": "us-east-1",
        "profile_name": "default",
        "project_name": "download_stuff",
        "runtime": "python3.7",
        "s3_bucket": "download_stuff",
        "keep_warm": false,
        "events": [{
           "function": "main.do_stuff",
           "expression": "rate(1 hour)"
        }]
    },
    "prod": {
        // config for production
    }
}

(can be created step by step with zappa init)

→ zappa deploy dev
Calling deploy for stage dev..
Downloading and installing dependencies..
 - psycopg2-binary==2.8.3: Using locally cached manylinux wheel
 - sqlite==python3: Using precompiled lambda package
'python3.7'
Packaging project as zip.
Uploading zappa-cron-test-dev-1569183776.zip (9.5MiB)..
100%|█████████████████████████████████████████| 9.97M/9.97M [00:21<00:00, 528KB/s]
Scheduling..
Scheduled zappa-cron-test-dev-test.run with expression rate(1 minute)!
Deployment complete!

Easily view logs

# Show all logs
→ zappa tail dev
Calling tail for stage dev..
[1569183806942] Instancing..
[1569183806943] [DEBUG] 2019-09-22T20:23:26.942Z 97e8-d0b23aaf17a0 Zappa Event:
{'time': '2019-09-22T20:23:24Z', 'detail-type': 'Scheduled Event', 'source': 'aws.events',
'region': 'us-east-1', 'detail': {}, 'version': '0',
'resources': ['arn:aws:events:us-east-1:<>:rule/zappa-cron-test-dev-test.run'],
'id': '75265076-af20-30ca-fd1e-b3fcbe478843', 'kwargs': {}}
[1569183806988] hello world!!
[1569183865861] [DEBUG] 2019-09-22T20:24:25.861Z 8064-931e09d761e6 Zappa Event:
{'time': '2019-09-22T20:24:24Z', 'detail-type': 'Scheduled Event', 'source': 'aws.events',
'region': 'us-east-1', 'detail': {}, 'version': '0',
'resources': ['arn:aws:events:us-east-1:<>:rule/zappa-cron-test-dev-test.run'],
'id': '823d2b37-6a85-c162-5084-1906492f4b93', 'kwargs': {}}
[1569183865861] hello world!!

Easily view logs

# Show logs from specific timeframe
→ zappa tail dev --since 1m

# Show logs from specific timeframe and filter
→ zappa tail batch_secondary_us_east_1 --since 1d --filter "ERROR"

Invoke raw commands on lambda for testing (avoid re-deploying)

→ zappa invoke dev "import psycopg2; print('hello')" --raw
Calling invoke for stage dev..
[START] RequestId: e35516da-b71d-4452-9896-e622fe263d1f Version: $LATEST
Instancing..
[DEBUG] 2019-09-22T20:20:09.25Z e622fe263d1f Zappa Event:
{'raw_command': "import psycopg2; print('hello')"}
hello
[END] RequestId: e35516da-b71d-4452-9896-e622fe263d1f
[REPORT] RequestId: e35516da-b71d-4452-9896-e622fe263d1f
Duration: 198.44 ms
Billed Duration: 200 ms
Memory Size: 512 MB
Max Memory Used: 84 MB
Init Duration: 525.29 ms

"app": {
    "app_function": "domi.app.app",
    "aws_region": "us-east-1",
    "slim_handler": false,
    "runtime": "python3.7",
    "certificate_arn": "arn:aws:acm:us-east-1:XXXXXX:certificate/XXXXXX",
    "domain": "domi.cloud",
    "keep_warm": true,
    "keep_warm_expression": "cron(0/3 12-4 ? * * *)",
    "timeout_seconds": 3,
},

"batch_primary_us_east_1": {
    "slim_handler": false,
    "keep_warm": false,
    "aws_region": "us-east-1",
    "runtime": "python3.7",
    "events": [
        {
           "function": "domi.apartments.handlers.get_all_listings",
           "expression": "cron(0 */2 * * ? *)"
        },
        {
           "function": "domi.apartments.handlers.process_new_listings",
           "expression": "cron(15 */2 * * ? *)"
        },
        {
           "function": "domi.apartments.handlers.check_listing_statuses",
           "expression": "cron(15 */2 * * ? *)"
        },
    ],
    "timeout_seconds": 900,
}

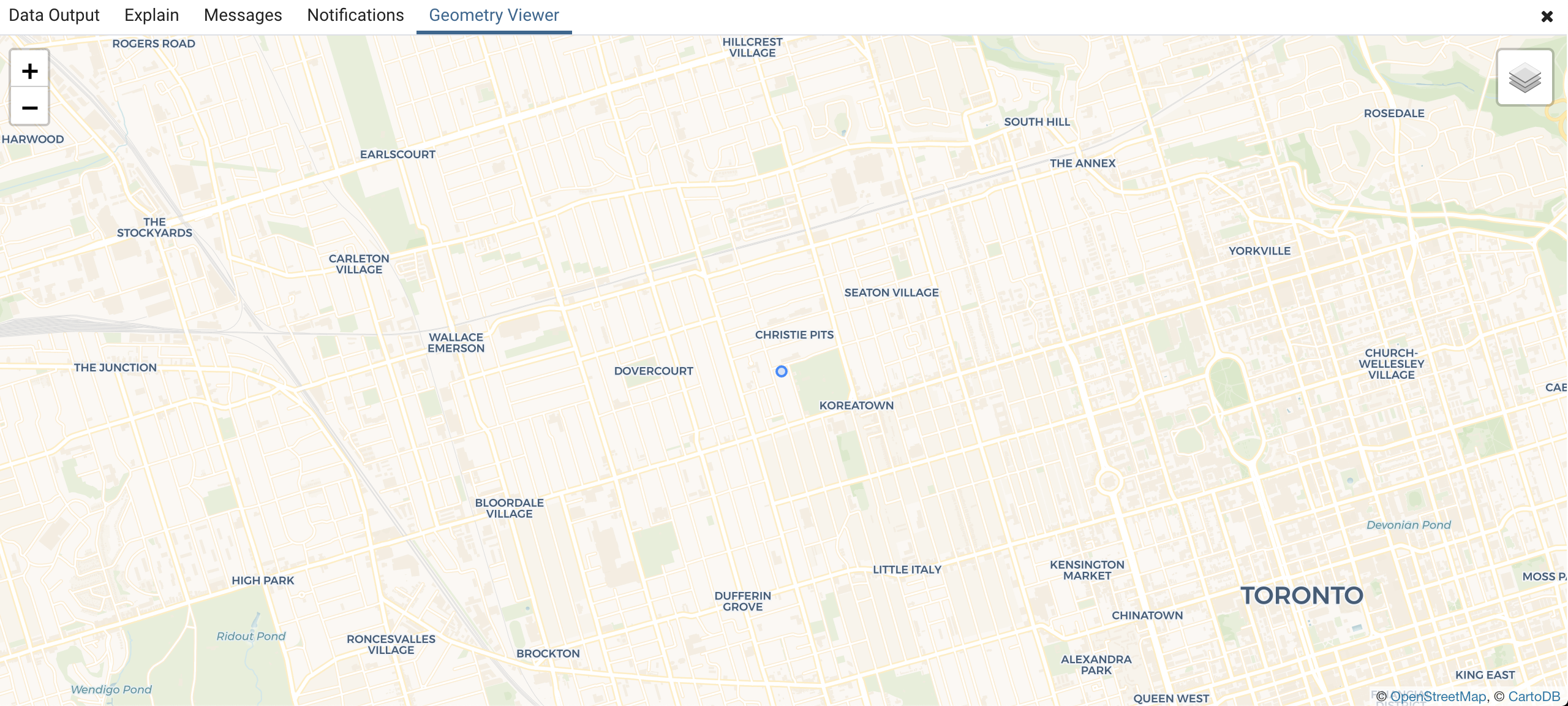

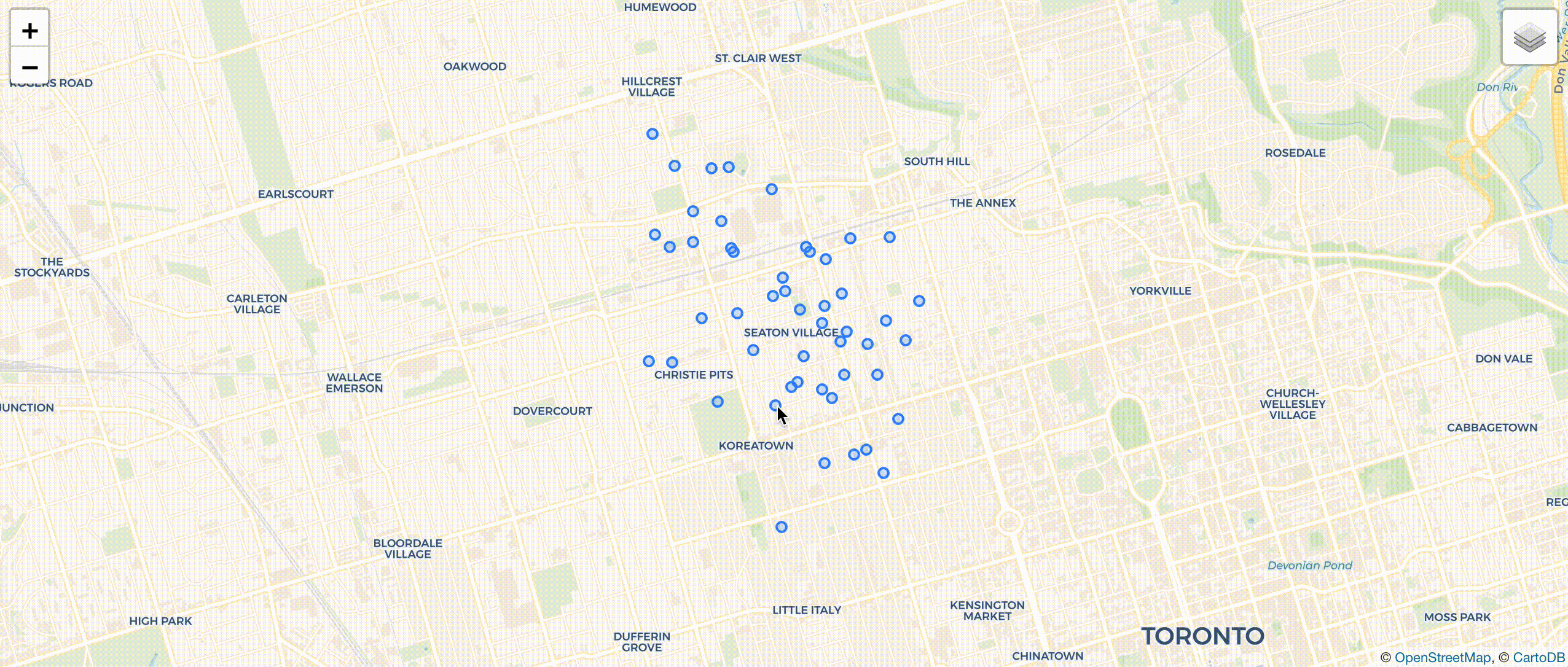

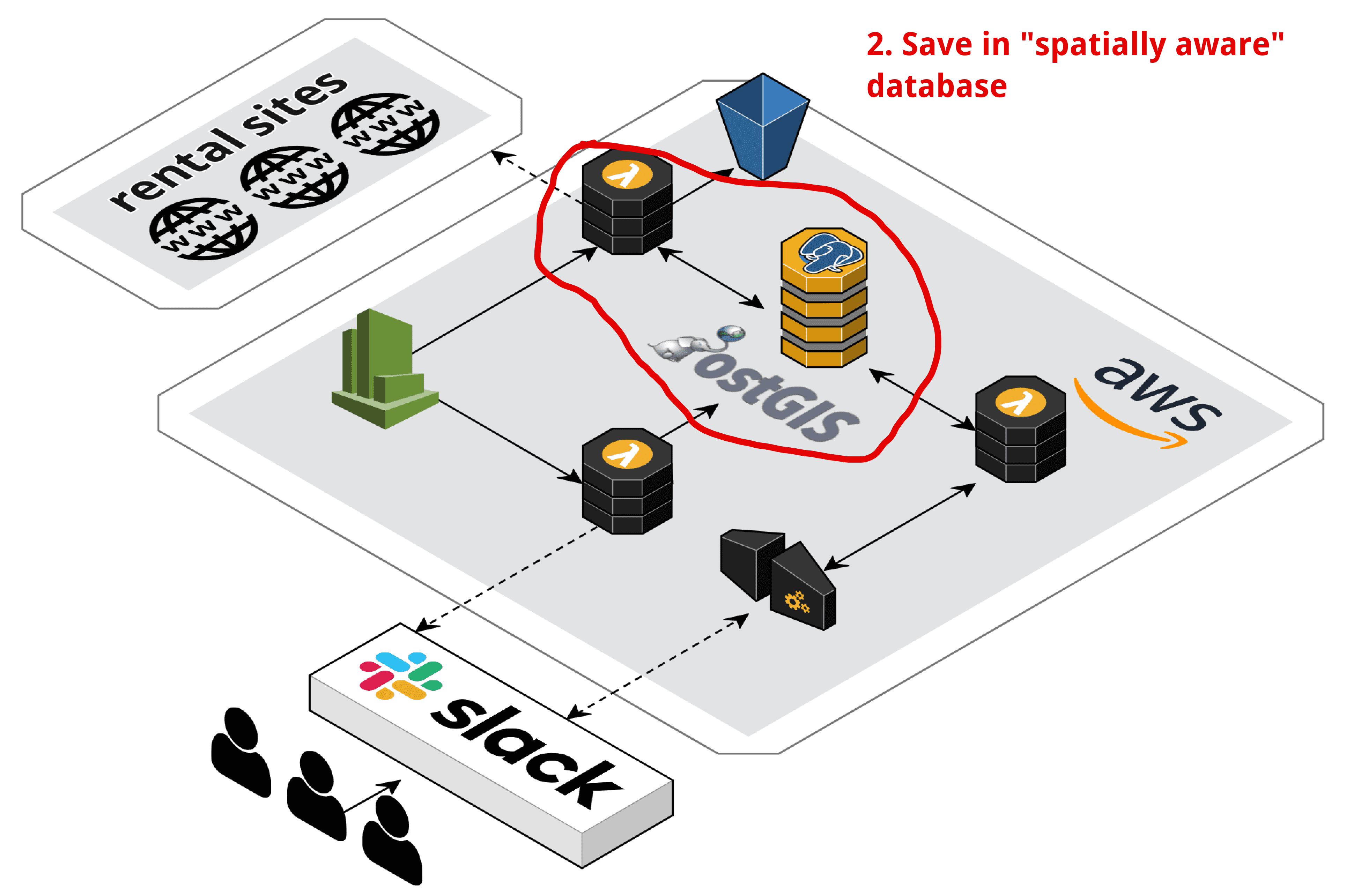

Run fast, powerful spatial queries

SELECT listings.*
FROM listings, user_regions
WHERE
    ST_Contains(user_regions.geom, listings.geom)
    AND bedrooms >= 1
    AND bathrooms >= 1
    AND ...

from geoalchemy2 import Geometry
from sqlalchemy import Column, Integer

class Listing(BASE):
    __tablename__ = "listings"

    id = Column(Integer, primary_key=True)
    geom = Column(Geometry(geometry_type="POINT", srid=4326))
    bedrooms = Column(Integer)

class UserRegion(BASE):
    __tablename__ = "user_regions"

    id = Column(Integer, primary_key=True)
    user_id = Column(Integer, ForeignKey("users.id"))
    geom = Column(Geometry(geometry_type="POLYGON", srid=4326))

from models import Listing, UserRegion, SESSION
from sqlalchemy import func

listings = (
    SESSION.query(
        Listing.id,
        Listing.source,
        Listing.price,
        ...
    )
    .join(
        UserRegion,
        and_(
            UserRegion.user_id == 123,
            func.ST_Contains(UserRegion.geom, Listing.geom),
        ),
    )

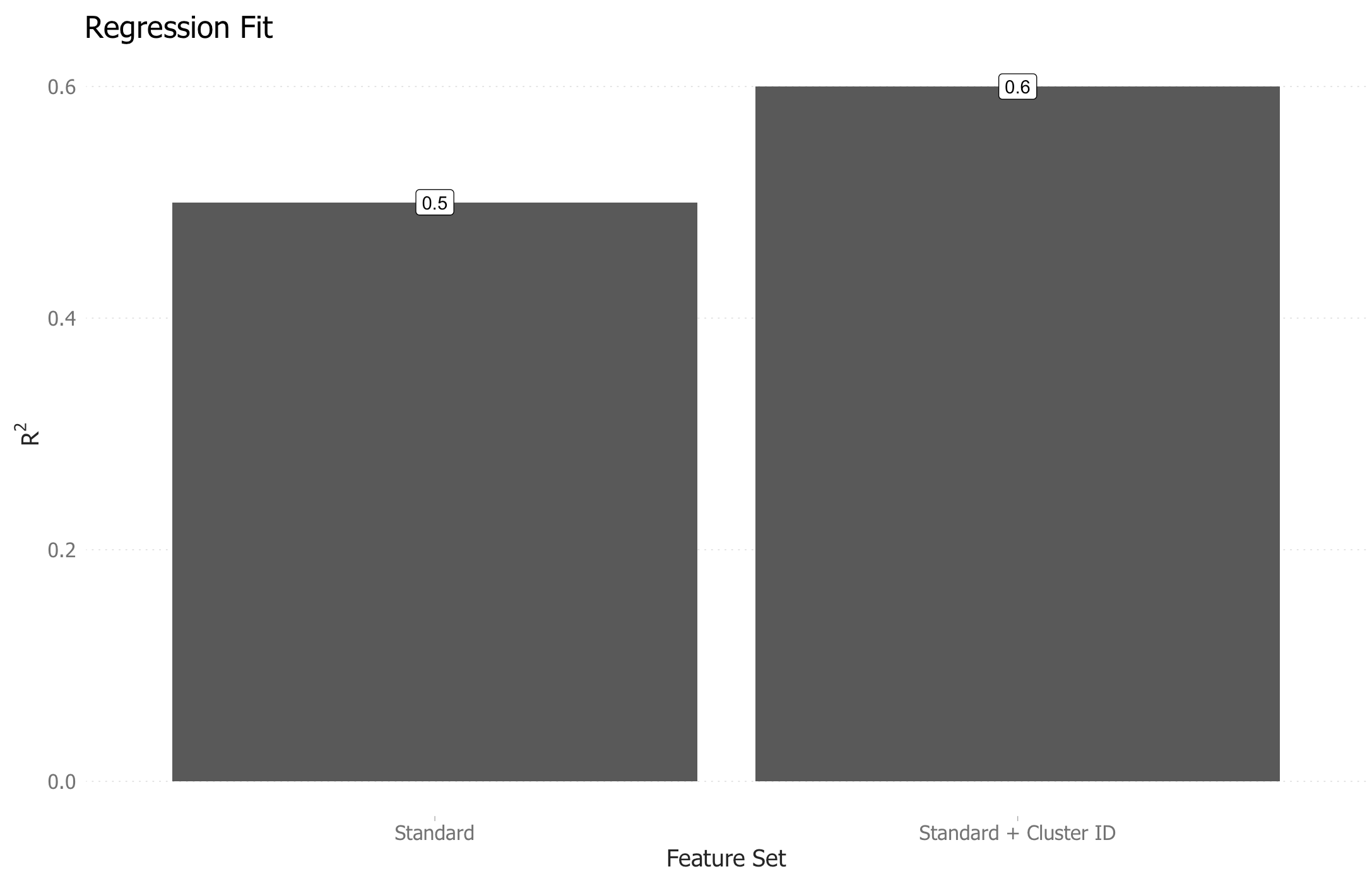

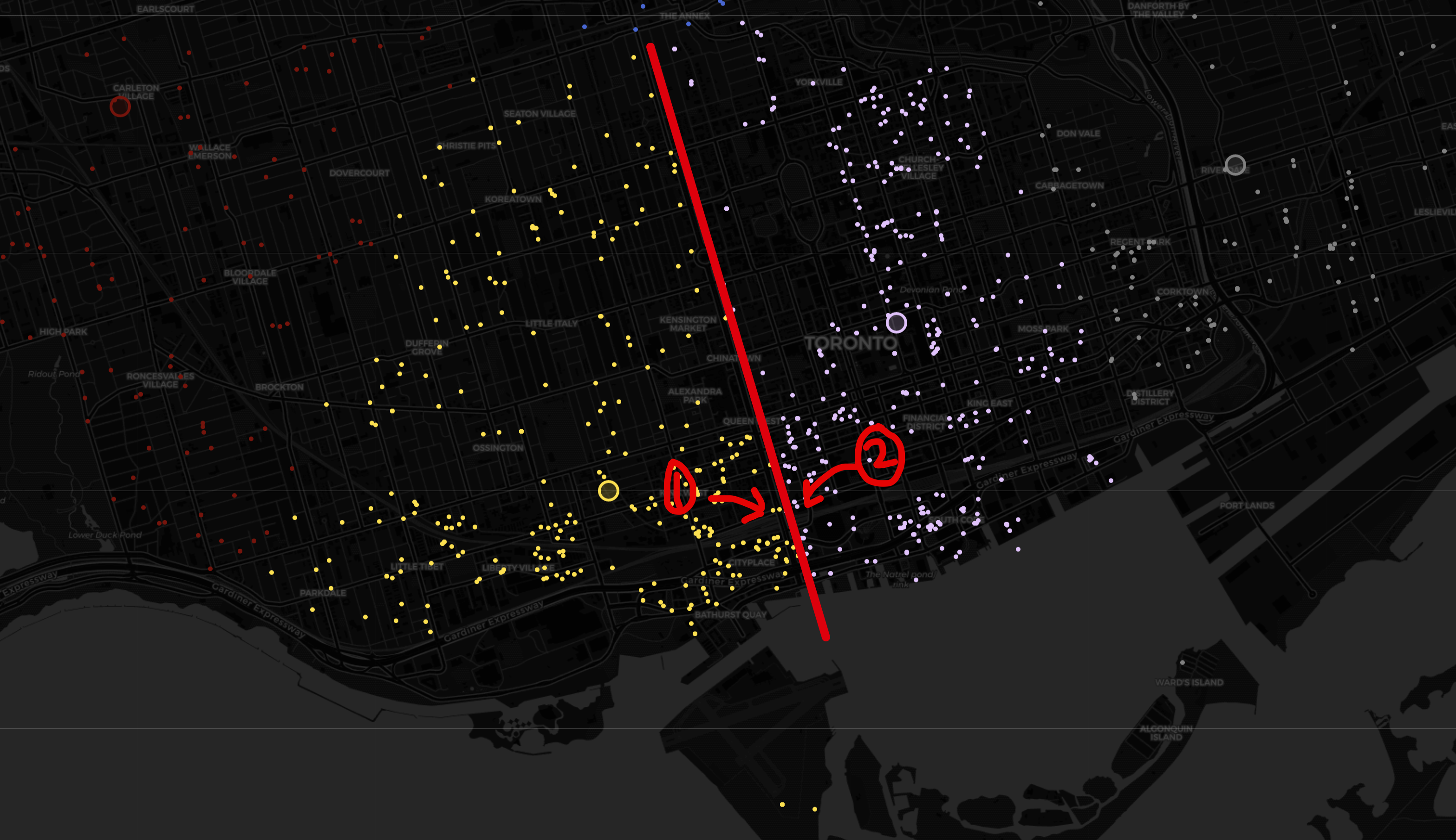

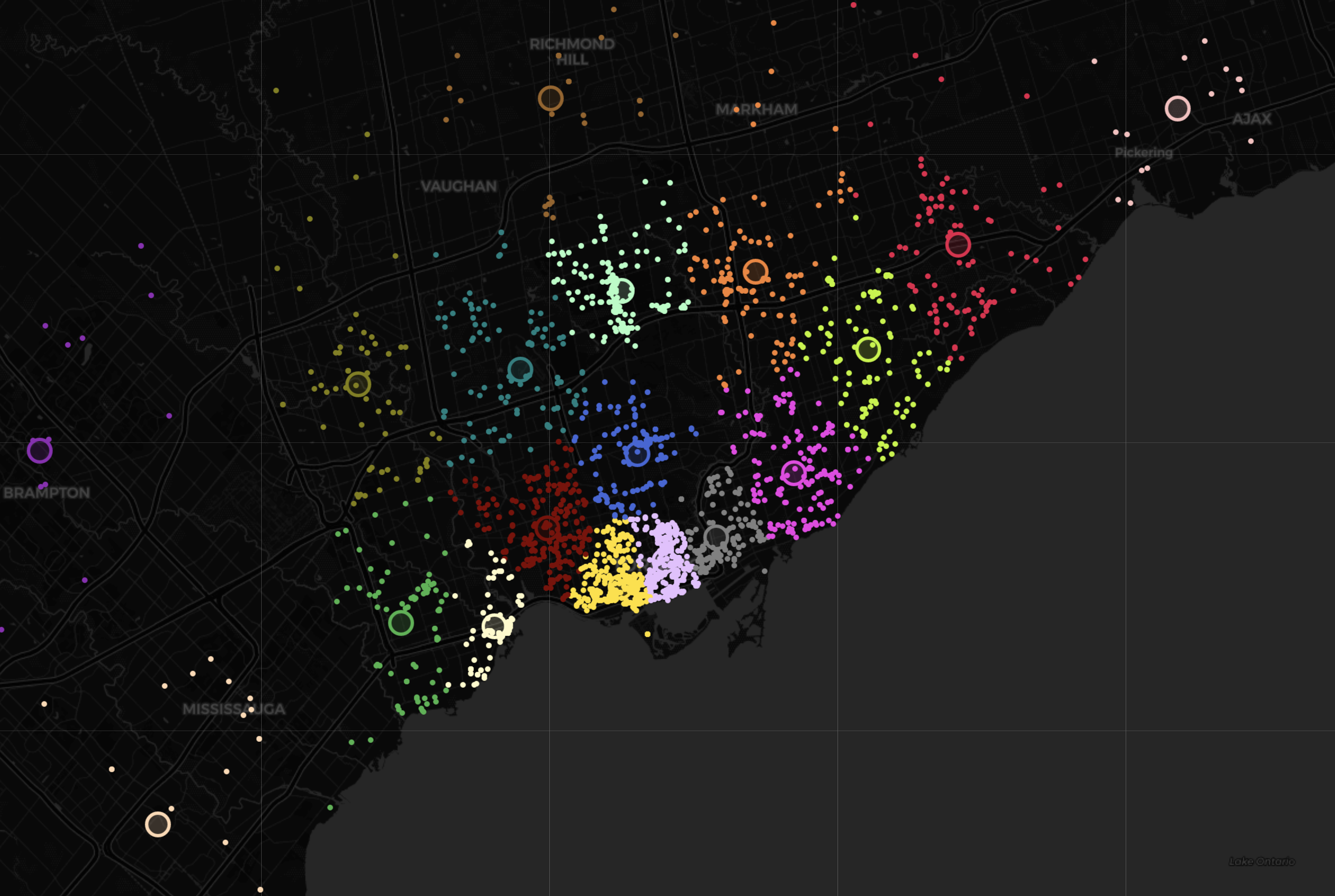

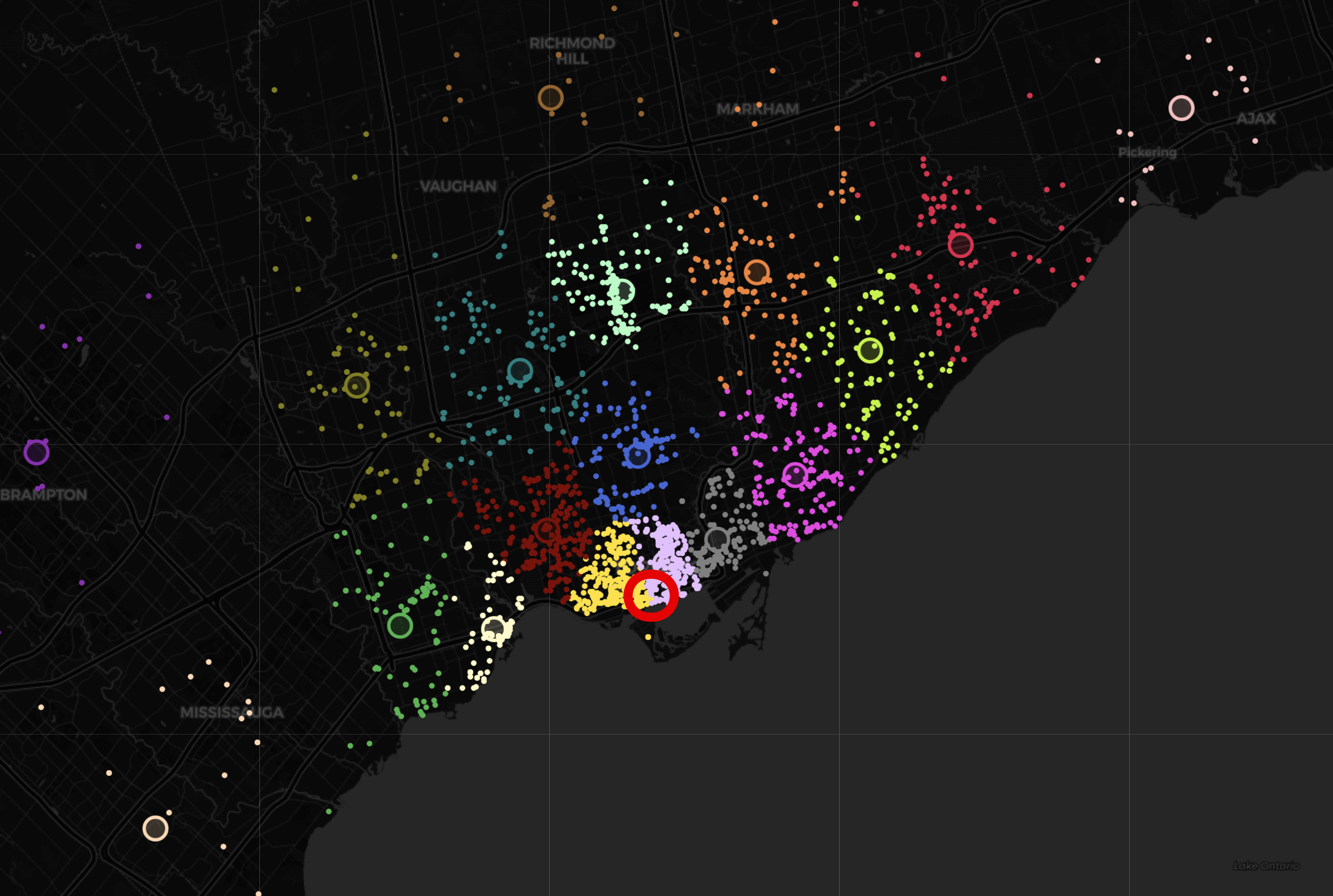

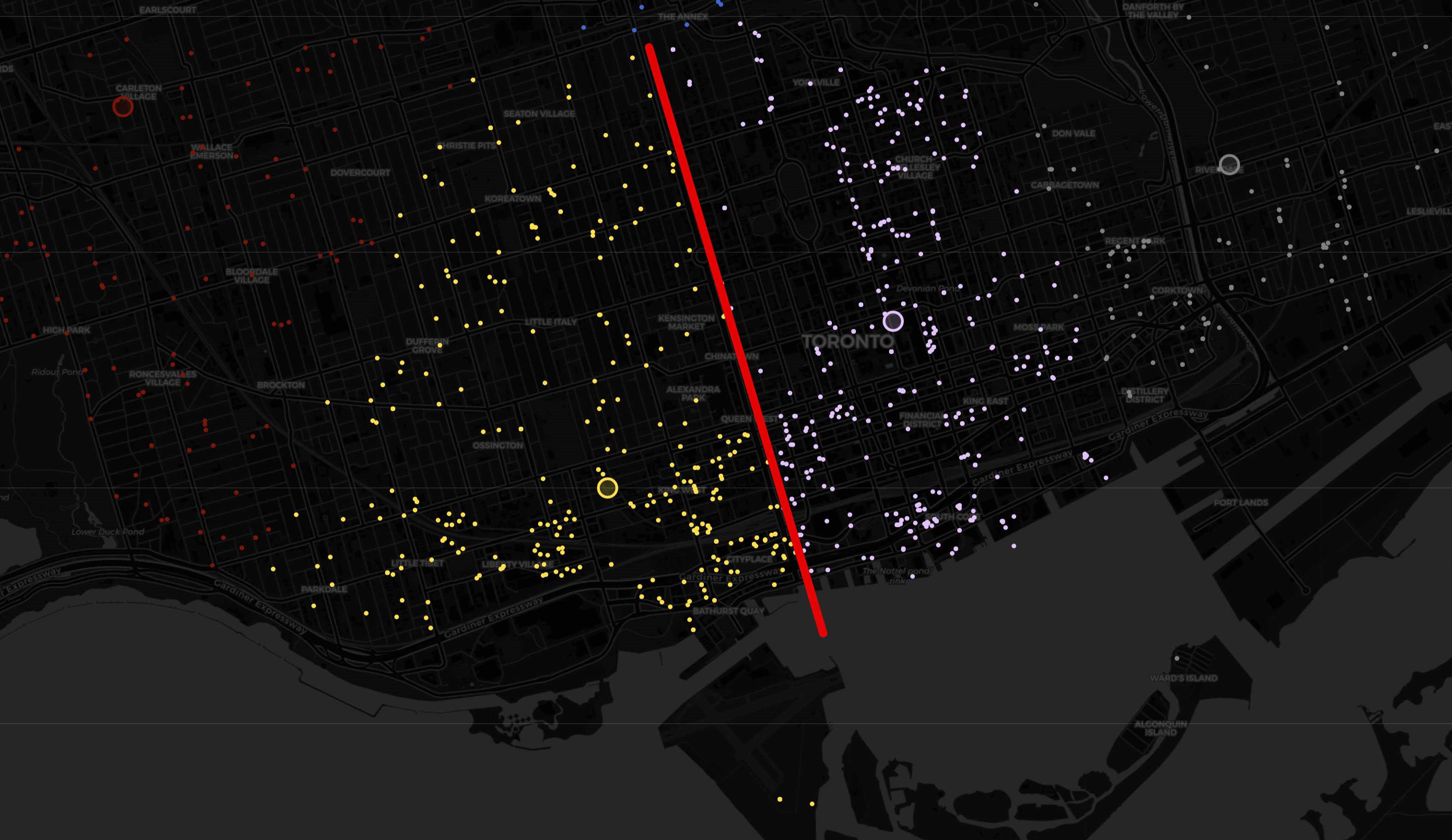

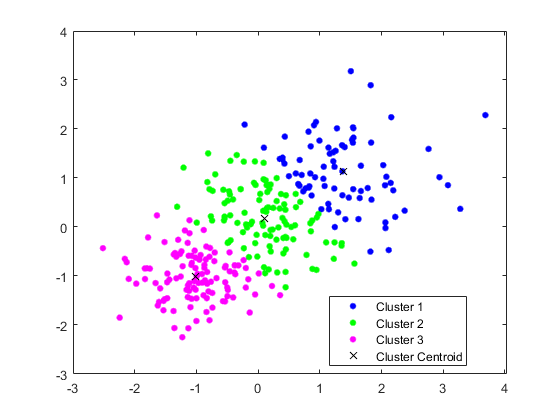

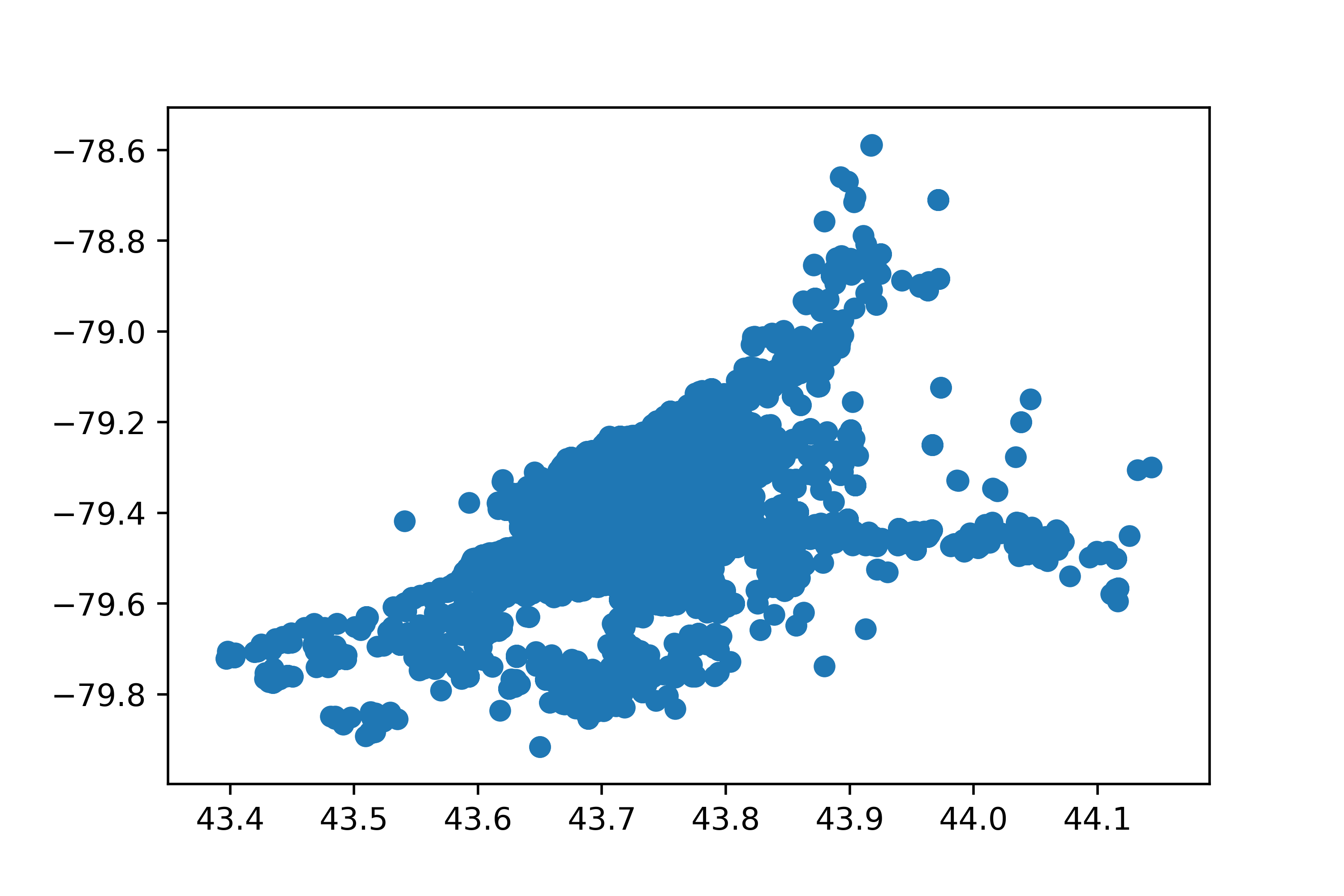

Area Encoding?

Automatically cluster each point into an "area"

from sklearn.cluster import KMeans

X = df[['lat', 'long']].values
km = KMeans(20, init='k-means++')
km.fit(X)
clusters = km.predict(X) # classify points into 1 of 20 clusters

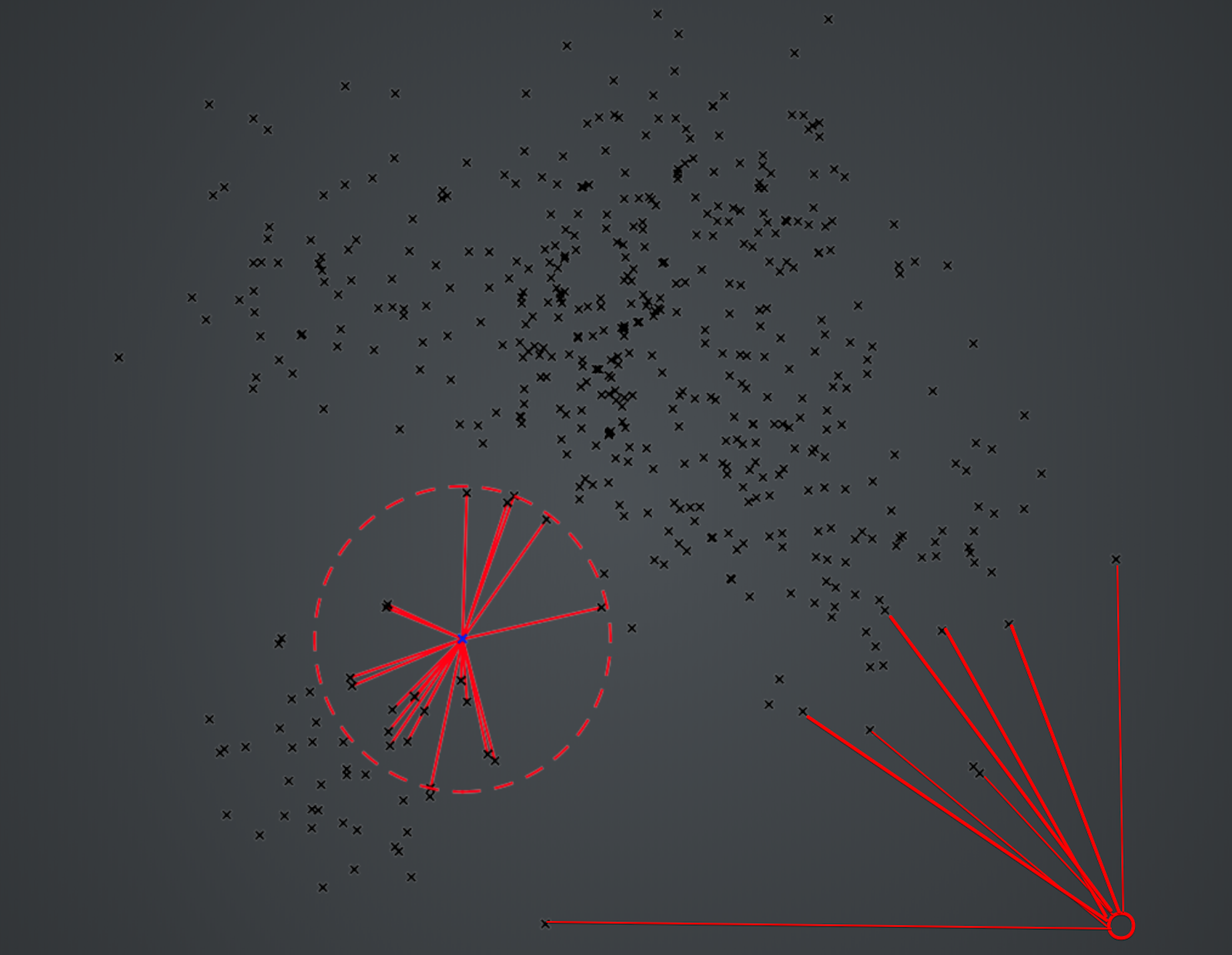

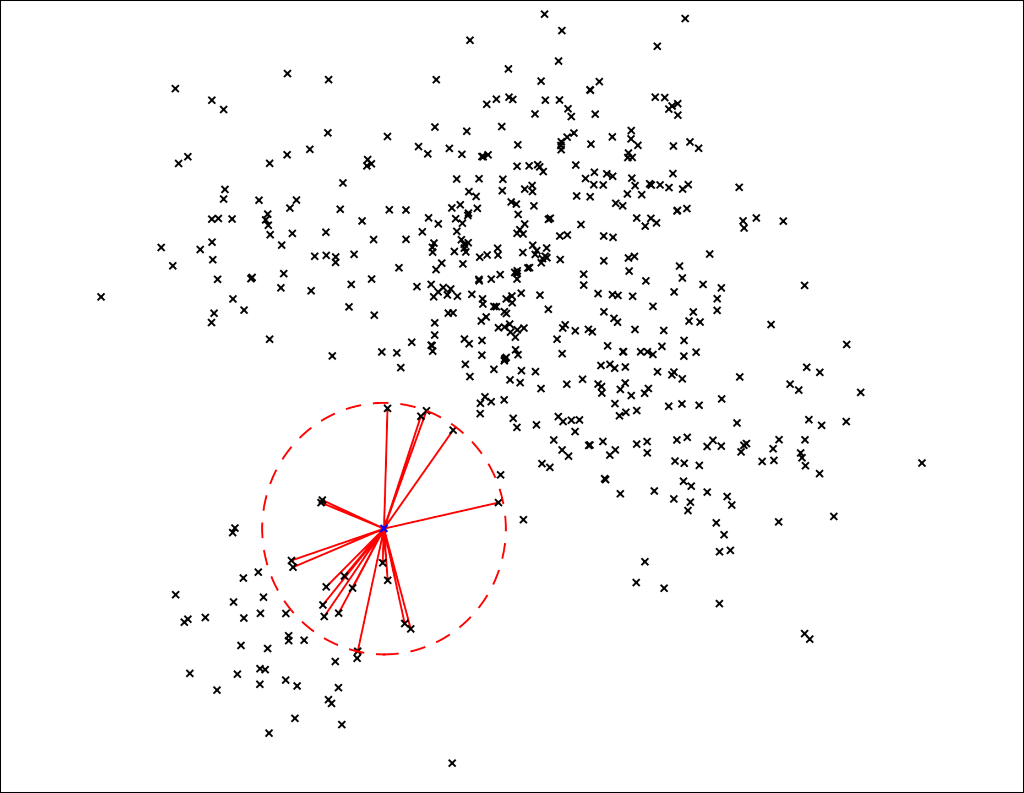

>>> from annoy import AnnoyIndex

# build the tree
>>> featurees = ["lat_scaled", "long_scaled", "bedrooms_scaled"]
>>> tree = AnnoyIndex(len(features), "euclidean")
>>> for index, row in df[features].iterrows():
        tree.add_item(index, row.values)
>>> tree.build(10)

...

# search da tree
>>> apartment_index = 1 # index of apartment to search
>>> tree.get_nns_by_item(apartment_index, 51) # get 50 closest points
[1, 23412, 424, 794, 12, 939, 58, 3, ...]

"price_rank_primary": {
    "project_name": "domi",
    "slim_handler": true,
    "memory_size": 3000,
    "apigateway_enabled": false,
    "keep_warm": false,
    "aws_region": "us-east-1",
    "runtime": "python3.7",
    "events": [
        {
           "function": "domi.apartments.price_rank.price_rank",
           "expression": "cron(0 */2 * * ? *)"
        }
    ],
    "timeout_seconds": 900,
},

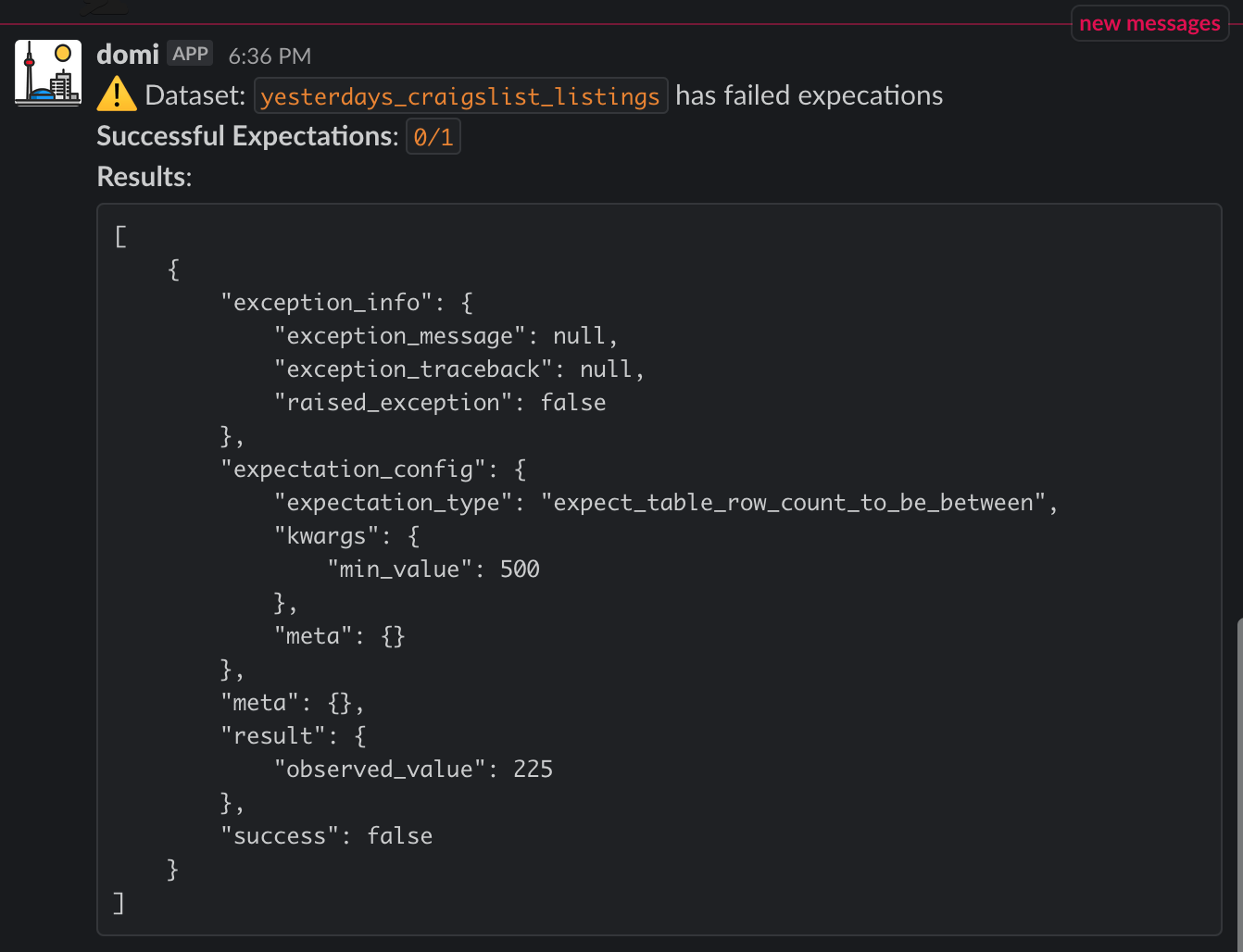

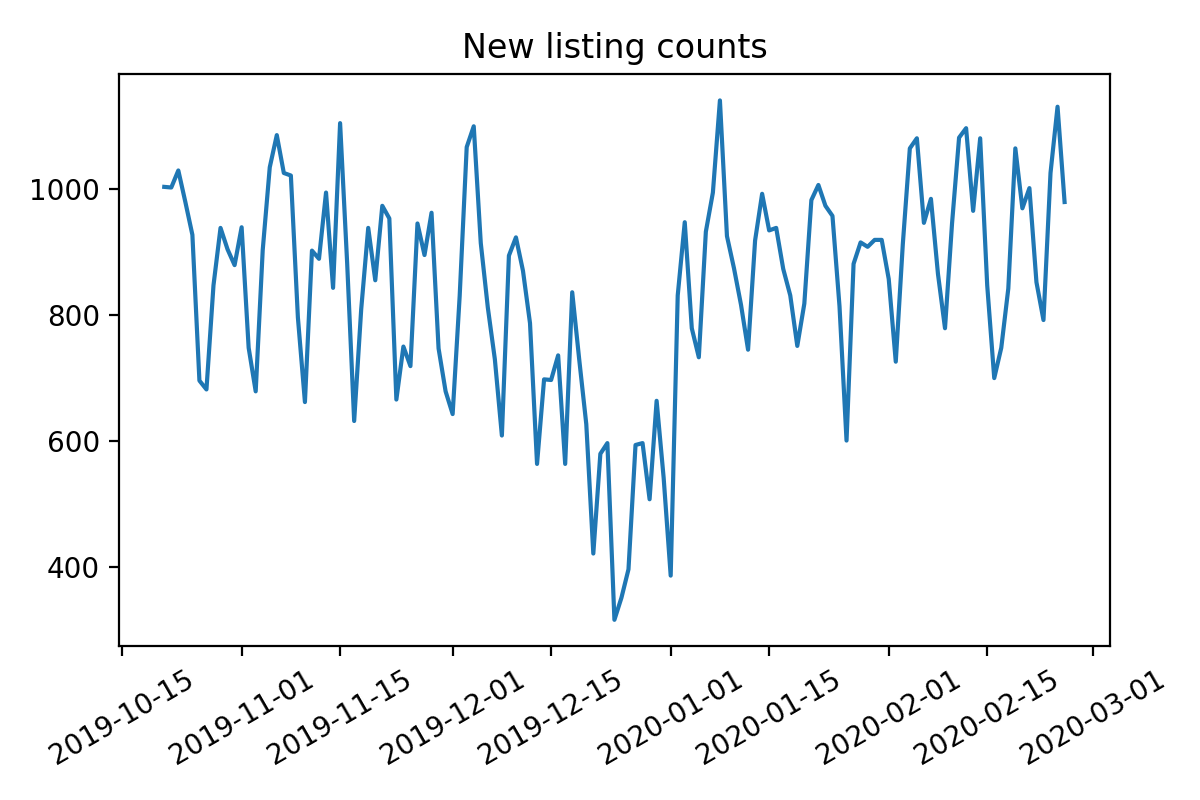

Example: Validating Row Counts

expectations.json

{
  "data_asset_name": "yesterdays_craigslist_listings",
  "expectation_suite_name": "default",
  "expectations": [
    {
      "expectation_type": "expect_table_row_count_to_be_between",
      "kwargs": {
        "min_value": 300
      }
    }
  ],
}

run_data_checks.py

from domi.db import DB_ENGINE
from great_expectations.dataset import SqlAlchemyDataset

sql_query = """
    SELECT id
    FROM {tablename}
    WHERE TRUE
        AND DATE_TRUNC('day', created_at) = CURRENT_DATE - INTERVAL '1' DAY
"""

new_sql_dataset = SqlAlchemyDataset(custom_sql=sql_query, engine=db_engine)
validation_results = new_sql_dataset.validate(expectation_suite="expectations.json")

if validation_results["success"]:
    ...

Serverless Gotchas and Workarounds

Gotcha 1: Shared SESSION object

from domi.handlers import process_new_listings
from domi.db import SESSION

# 👆everything instantiated above here is shared across future function invocations
def lambda_handler(event, context):
    process_new_listings()

Objects instantiated on import are shared across function invocations
- they only get reset during a cold start
If one transaction fails, all subsequent transactions in other invocations will start failling

Workaround

# Automatically ensure all transactions are succesfully committed,
# or rolled back if not
def commit_session(_raise=True):
    if not SESSION:
        return
    try:
        SESSION.commit()
    except Exception as e:
        SESSION.rollback()
        if _raise:
            raise

def session_committer(func):
    def wrapper(*args, **kwargs):
        try:
            return func(*args, **kwargs)
        finally:
            commit_session()

    return wrapper

# Use decorator on any function doing database transactions
@session_committer
def process_new_listings():
    ...

Source - blog.brianz.bz

Gotcha 2: Slim handler kills performance on cold starts

{"slim_handler": true} saves deployment package to S3
- I need this because some of my processes rely on pandas, numpy, scipy
pulls down package and copies to /tmp directory at runtime
For a warm lambda function, this only happens once, and we are okay
When traffic spikes, AWS autoscales and starts spinning up more lambdas
- all of these go through cold start
- must pull down and unzip >100 MB file from S3

Workaround

Zappa allows custom Python functions to be invoked at different stages of the deployment process
Build a custom zip callback to remove large packages from deployment packages

"callbacks": { // Call custom functions during the local Zappa deployment/update process
    "settings": "my_app.settings_callback", // After loading the settings
    "zip": "my_app.zip_callback", // After creating the package
    "post": "my_app.post_callback", // After command has executed
}

Workaround

"app": {
    "app_function": "domi.app.app",
    "aws_region": "us-east-1",
    "runtime": "python3.7",
    "certificate_arn": "arn:aws:acm:us-east-1:XXXXXX:certificate/XXXXXX",
    "domain": "domi.cloud",
    "keep_warm": true,
    "keep_warm_expression": "cron(0/3 12-4 ? * * *)",
    "timeout_seconds": 3,

    // updated settings
    "slim_handler": false,
    "regex_excludes": [
        "pandas", "scipy", "numpy", "PIL", "statsmodels", "matplotlib"
    ],
    "callbacks": {
        "zip": "zappa_package_cleaner.main"
    },
},

See blog post for more details.

Workaround

(⚠️ hackiness follows)

Spin up EC2 with Amazon Linux AMI
Install annoy and build compiled dependencies
Save compiled package to repo

try:
    # when running locally this will import succesfully
    # when running on lambda, this will fail and fallback to pre-compiled version
    from annoy import AnnoyIndex
except:
    from lambda_annoy import AnnoyIndex

Wrapping up...

Zappa & serverless let me focus on differentiating factors
I didn't have to worry about:
- AWS configuration headaches (no api gateway)
- Configuring ELBs and more servers

Appendix

Deploying with Github Actions

ianwhitestone.work/AWS-Serverless-Deployments-With-Github-Actions

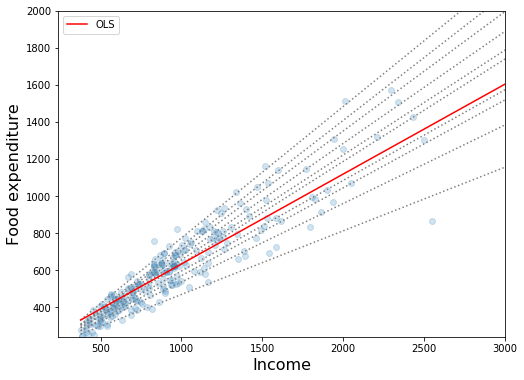

import statsmodels.formula.api as smf

mod = smf.quantreg('foodexp ~ income', data) # uses patsy model formulas
res = mod.fit(q=.5)

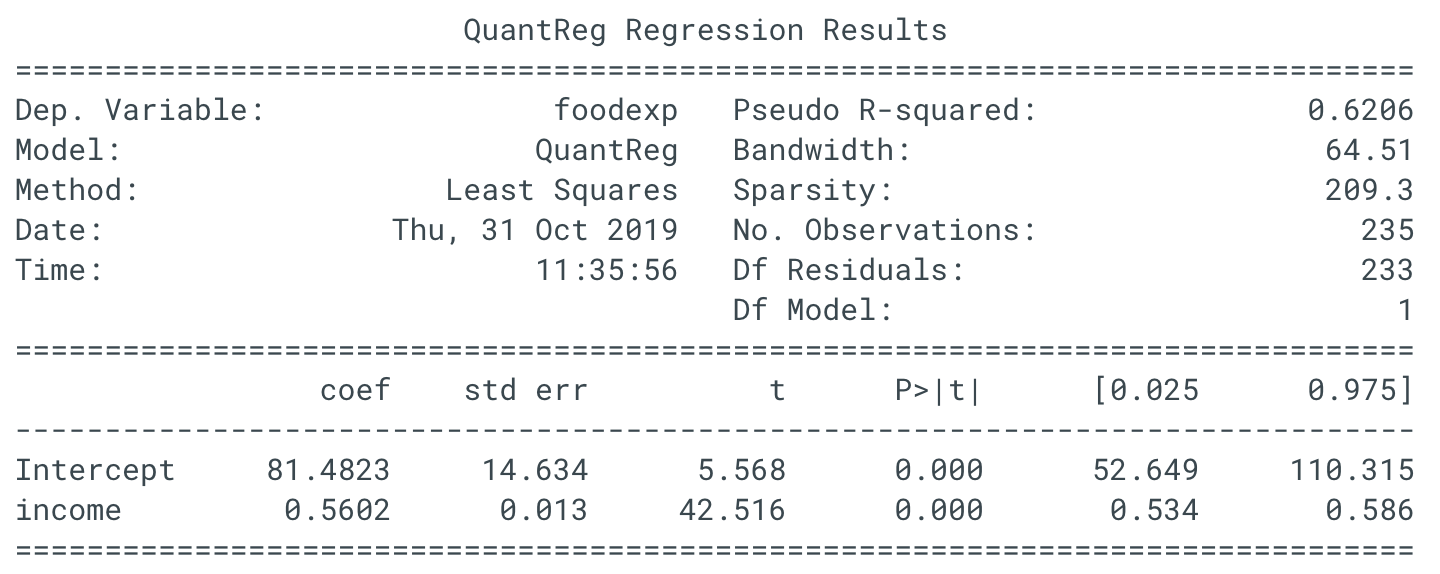

print(res.summary())
